4 axle lowboy trailer is used to transport construction machinery such as crawlers, cranes, excavators, crawler loaders and other crawler machinery
The lowboy trailer's gooseneck coupler connects it to the towing vehicle. The trailer can be selected in different lengths and widths according to needs. The entire vehicle adopts mechanical suspension technology to make it more stable and comfortable during driving.
lowboy trailer for sale is also equipped with a variety of safety devices, such as braking system, light system, anti-lock braking system and so on. These devices can greatly improve the driver's ability to control the vehicle in an emergency and ensure driving safety.

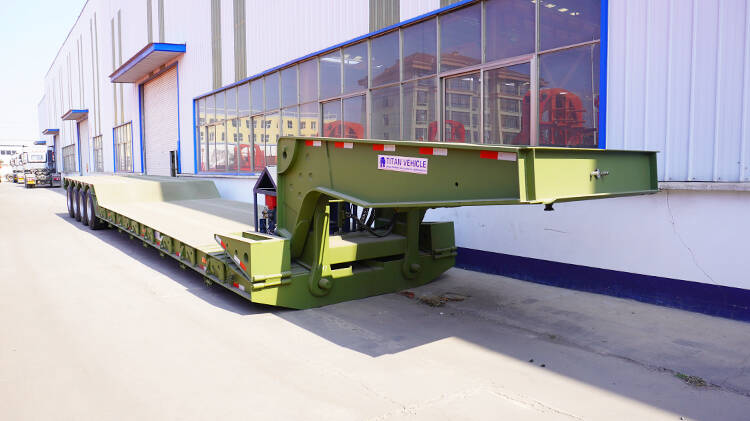

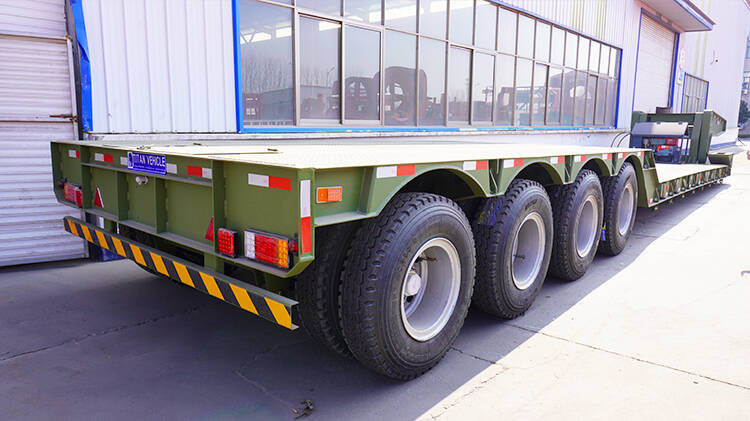

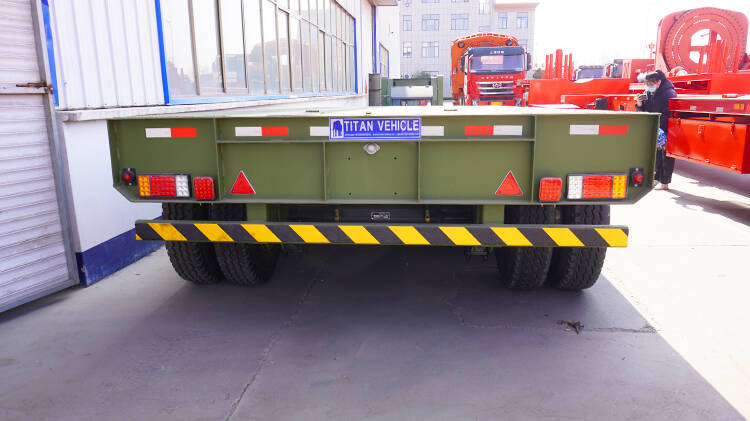

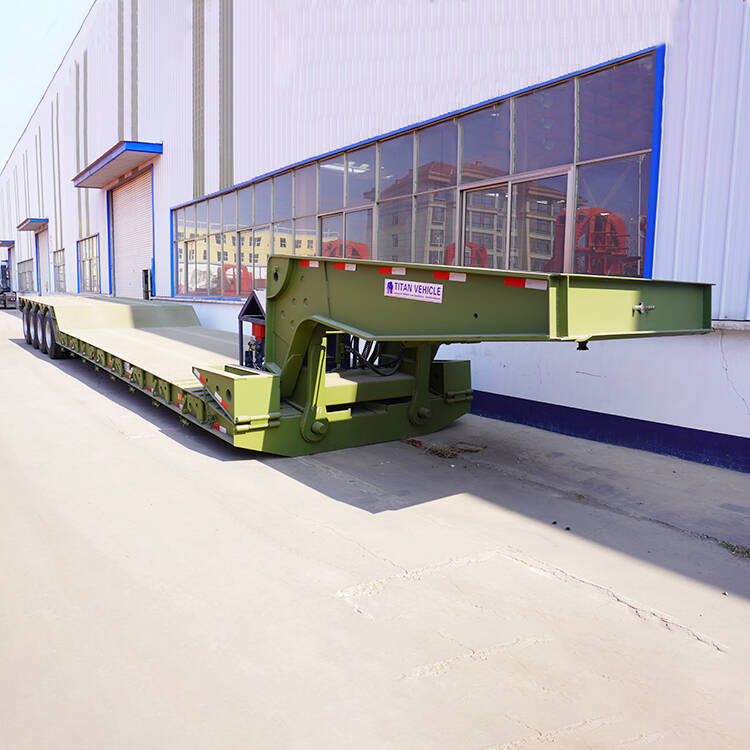

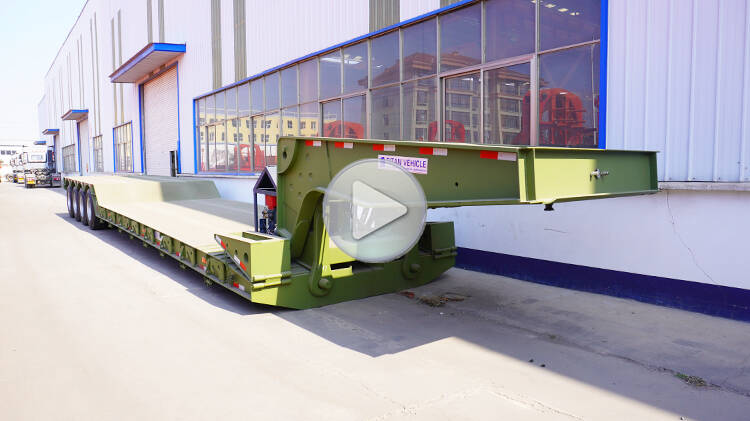

4 Axle 100t Lowboy Trailer for Sale in Toamasina Madagascar
4 Axle 100t Lowboy Trailer for Sale in Toamasina Madagascar
4 Axle 100t Lowboy Trailer for Sale in Toamasina Madagascar
1. Easy unloading: The 4 axle lowboy trailer has a lower loading platform, which makes unloading easier and faster.
2. Strong adaptability to road conditions: 100ton lowboy trailer has a stable chassis structure and high passability, and can adapt to various road conditions, such as highways and mountain roads.
3. Low maintenance cost: The maintenance cost of 4 axle lowboy trailer for sale is relatively low because of its reliable quality, relatively simple structure and easy maintenance.
4. Good stability: The gooseneck trailer for sale is connected with the tractor through the gooseneck to form a whole, so that it has better stability when driving and reduces the possibility of cargo shaking.
Dimension: 16500mm x 3000mm x 2500mm（depends on final design）
Loading capacity(T): 50-150T
Axle: 4 axles, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

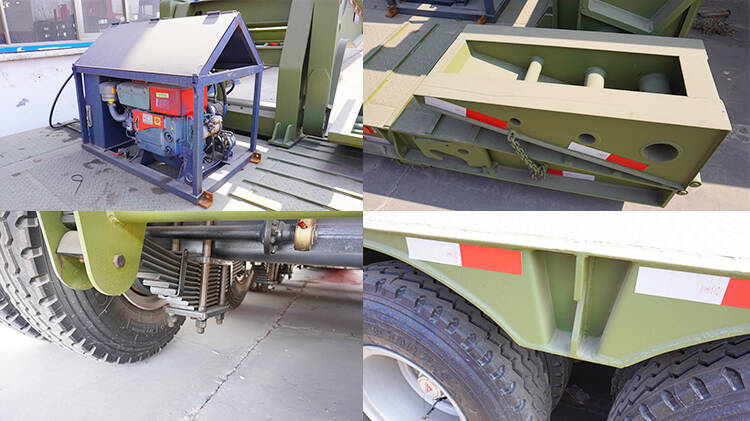

Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light
Voltage: 24V
Tool box: 1 set
If you are interested in this 4 axle lowboy trailer, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
