2 Axle Skeleton Semi Trailer
2 Axle Skeleton Semi Trailer

2 Axle Skeleton Semi Trailer

9500

This is a 2 axle skeleton semi trailer, we can customize skeleton trailers with different sizes, number of axles and twist locks according to your needs.

SKU: TITAN8801006
MPN: TITAN8801006
Brand: TITAN

Description of Skeleton Semi Trailer

This 2 axle skeleton semi trailer is made of high-quality high-strength steel, which not only ensures high load capacity, but also achieves the advantage of light weight.

The Skeleton semi trailer is specially designed to transport containers of various sizes. A 20" or 40" container can be shipped using the skeleton trailer. You can configure as many twist locks as you want according to your needs.

2 Axle Skeleton Semi Trailer for Sale in Madagascar

2 Axle Skeleton Semi Trailer for Sale in Madagascar

2 Axle Skeleton Semi Trailer for Sale in Madagascar

2 Axle Skeleton Semi Trailer for Sale in Madagascar

2 Axle Skeleton Semi Trailer for Sale in Madagascar

2 Axle Skeleton Semi Trailer for Sale in Madagascar

2 Axle Skeleton Semi Trailer for Sale in Madagascar



Advantages of Skeleton Semi Trailer

1. The skeleton semi trailer can be used to transport containers of various sizes. Its structural design is simple, stable and highly flexible.

2. Due to the high connection precision and reliable design of each component on the skeleton trailer, it has good carrying capacity and handling performance, and the driving is stable during transportation, which can maintain a high transportation speed and greatly improve the efficiency of logistics transportation.

3. The 40ft skeleton semi trailer has the characteristics of low emission and low fuel consumption. At the same time, the equipped pneumatic brake system, tire pressure monitoring system, etc. can save energy and fuel, and greatly reduce the energy consumption cost of the entire logistics process.

4. The skeleton semi trailer for sale has a reasonable structure and high load-carrying capacity. This means that it can carry more goods, reduce transportation costs, and improve transportation efficiency while meeting traffic regulations.



Specification of Skeleton Semi Trailer

Dimension(mm): 12500*2500*1550mm(depends on final design)

Loading capacity(ton): ≤40T

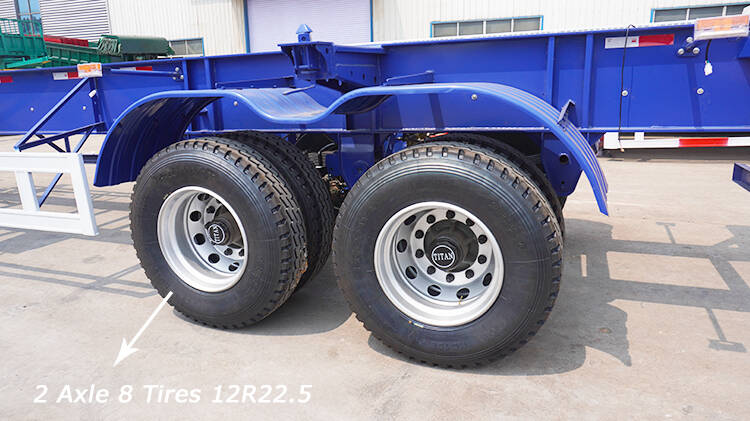

Axles: 2 axles, 13T/16T ,FUWA/ BPW

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

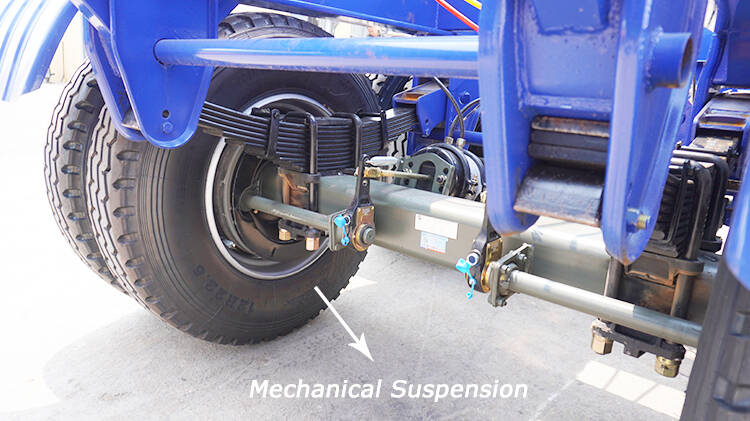

Suspension: Mechanical suspension

King Pin: JOST brand 2.0 or 3.5 inch

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

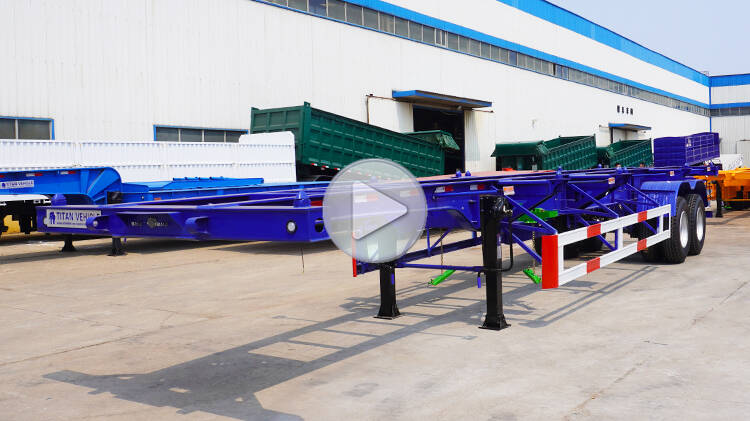

Video of Skeleton Semi Trailer

2 Axle Skeleton Semi Trailer for Sale in Madagascar



If you are interested in this 2 axle skeleton semi trailer, welcome to leave your message!

We will provide more details, quotation, catalog, drawing, videos for you!

Feedback

Review

Zaid from Toamasina, Madagascar - Mar. 23, 2023
The structure of this container skeleton transport semi-trailer is very strong, which can transport heavy goods safely and stably. We really like its design, it has a high load capacity and adaptability, it can be adjusted according to different cargo sizes.
