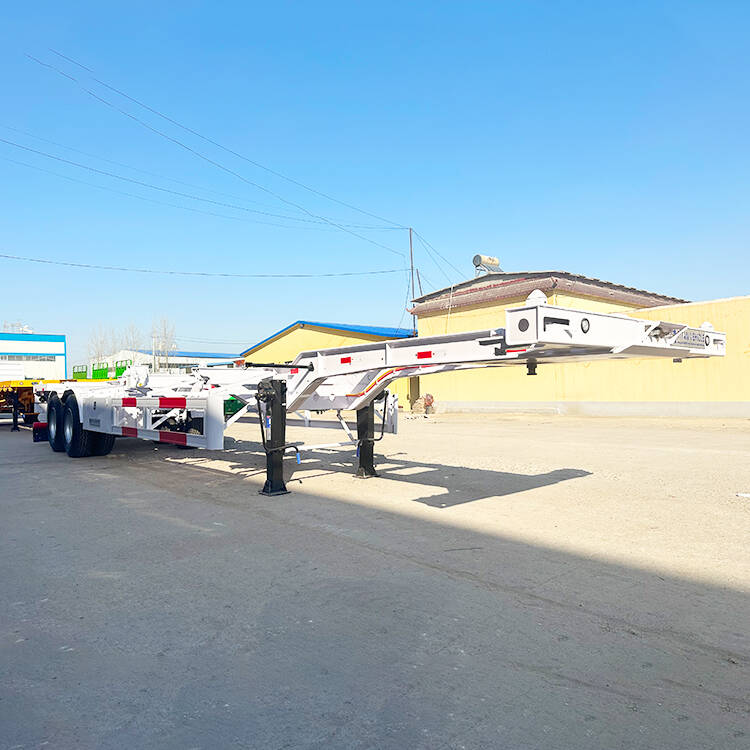

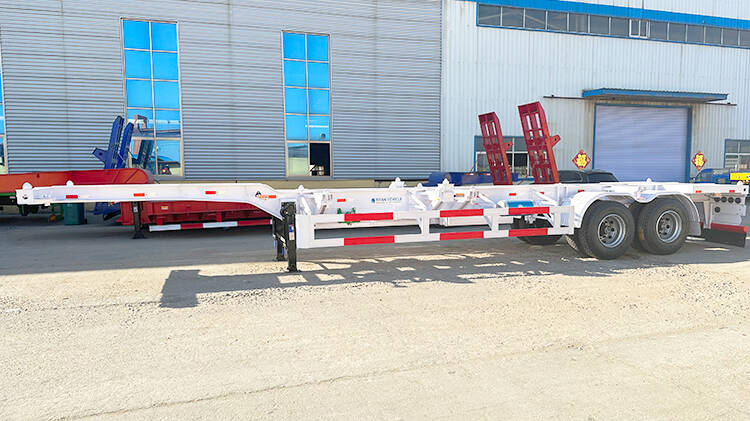

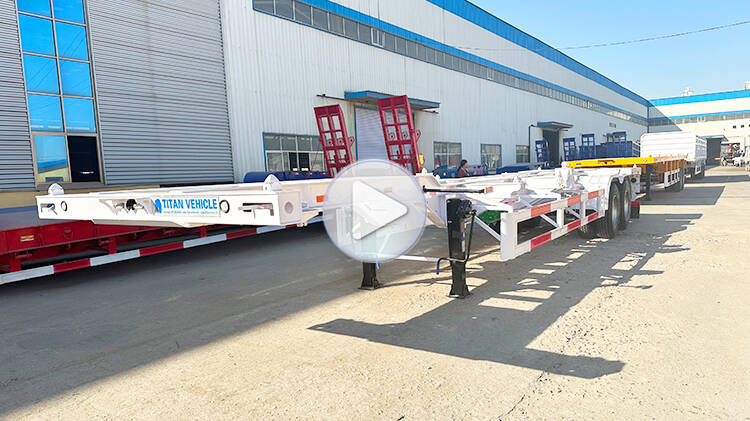

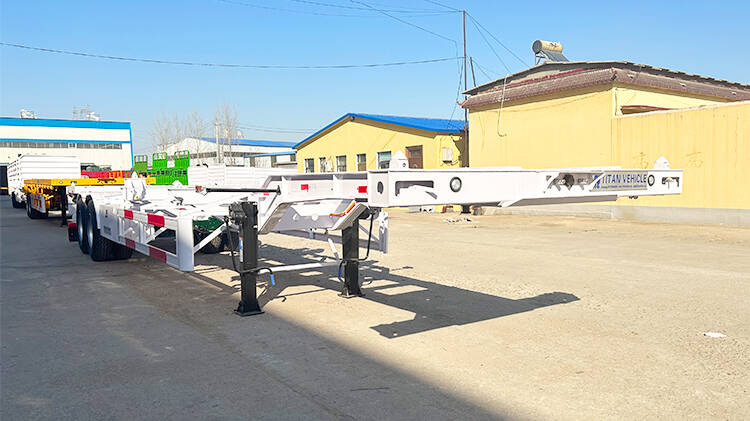

This container skeleton trailer is made of high-strength manganese steel, and the skeleton vehicle has the advantages of high load capacity and light weight.
This container skeletal trailer is specially designed to carry various cargo containers. You can choose to use the container skeletal trailer to transport one 20-inch, 40-inch or two 20-inch containers at a time. You can configure as many twist locks as you want according to your needs.
2 Axle 40ft Container Skeletal Trailer for Sale in Madagascar
2 Axle 40ft Container Skeletal Trailer for Sale in Madagascar
2 Axle 40ft Container Skeletal Trailer for Sale in Madagascar
1. This container skeletal trailer improves transportation efficiency and saves transportation costs.
2. This 2 axle container skeletal trailer is more flexible in transportation, and can transport 20-inch or 40-inch containers.
3. This container skeletal trailer for sale reduces the difficulty of manual operation and improves work efficiency.
4. This skeletal trailer uses high-quality chassis, tires and suspension, which can adapt to various road conditions, drive stably and reliably, improve cargo safety and reduce cargo damage.
Dimension(mm): 12500*2500*1550mm
Loading capacity(ton): ≤40T
Axles: 2 axles, 13T/16T ,FUWA/ BPW
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

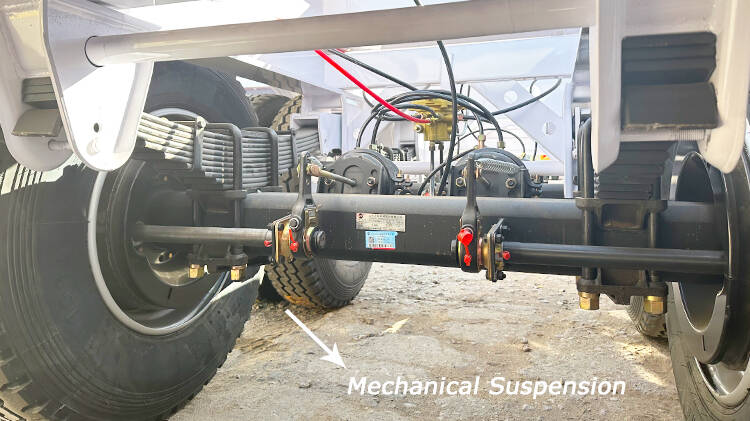

Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

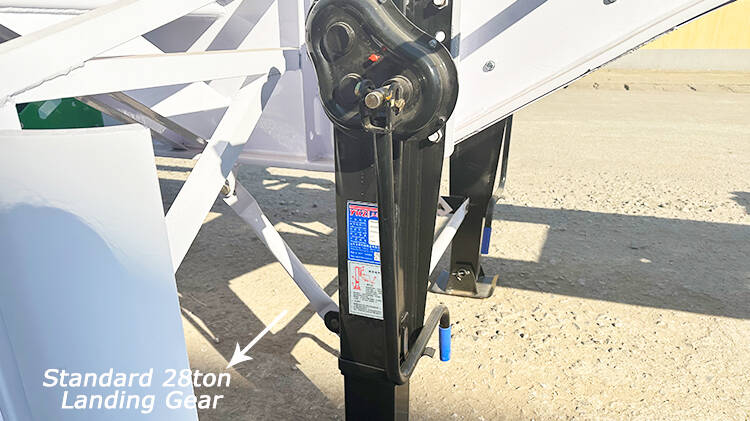

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: Optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
If you are interested in this 2 axle container skeletal trailer, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
